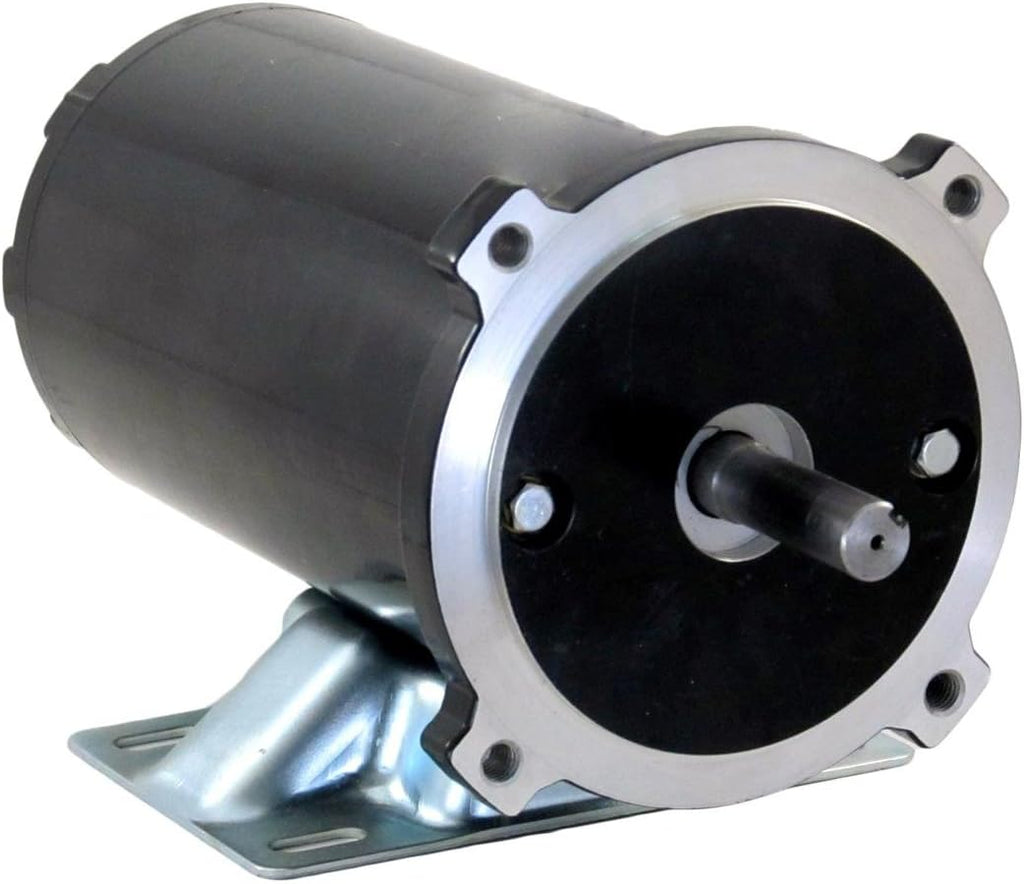

12V 1/2HP 1800 RPM POT PULLER MOTOR C7057
12V 1/2HP 1800 RPM POT PULLER MOTOR C7057
100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability.
Electric Motor - Voltage: 12V Rotation: Reversible Source: Aftermarket
RAREELECTRICAL BRAND COMPATIBLE WITH CAT, MAN
CANIMEX: 120Z402H, 120Z402H1, 120Z402H2, W4BB1601
LEESON: 108046, 108047, C4D17NK10B, C4D17NK68, C4D17NK6B, C4D17NK73, C4D17NK7E
SCOTT MOTORS: 4BB-01601, 4BB-1601
ROTATION: BI-ROTATIONAL
FIELD HOUSING O.D.: 4.500 IN.
FIELD HOUSING LENGTH: 192MM
END OF UNIT TO MOUNTING BRACKETS: 210MM
OVERALL LENGTH: 12.00 IN.
SHAFT OUTSIDE DIAMETER: 5/8 IN.
SHAFT LENGTH: 50MM
SHAFT STYLE: KEYWAY
TERMINAL 1 SIZE: 5/16 IN. – 24
TERMINAL 2 SIZE: 5/16 IN. – 24
HOUSING FINISH: COMM END COVER AND DRIVE END PLATE IS CAST ALUMINUM WITH BLACK POWDER COAT HOUSING.
WEIGHT: 17.6 LBS. / 7.98 KG
APPLICATIONS
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
APPLICATIONS: MOBILE EQUIPMENT, SALT SPREADERS, POT PULLERS, WINCHES, FLOOR CARE EQUIPMENT, TRACTION DRIVE, AND MANY MORE
NOTES: VERY RELIABLE AS AN REPALCEMENT TO THE SCOTT, LEESON, DAYTON, OR CANIMEX MOTORS FOUND ON VARIOUS MOBILE EQUIPMENT, TRACTION DRIVE, FLOOR CARE APPLICATIONS, AND OTHER CUSTOM APPLICATIONS.
